Servo / Step Motor
> 제품소개 > Motion Control Solution
> Servo / Step Motor고신뢰성의 뛰어난 제품수명.
고객의 다양한 요구상항에 맞는 최적 제품.
Specifications
KOMOTEK
KANZ Series – 초소형, 경량 서보모터
KANQ Series – 초박형, 경량 서보모터
- 산업용 로봇 시스템 및 반도체 제조 장비와 같은 정밀 자동화 기기 분야에 다양하게 적용가능.
| Function | Rated Output | Rated / Max Speed | Type | IP Class | Features | Application |
|---|---|---|---|---|---|---|
| r/min | ||||||
| KANZ | 30 ~ 600W | 3000/5000 | Cylinder | IP65 | Ultra low Inertia |
Belt devices, Robots, Chip mounters, Inserters, XY tables |
| 750W | 3000/4500 | |||||
| 950W | 3000/3500 | |||||
| KANQ | 100 ~ 400W | 3000/5000 | Pan cake | IP65 | Low Inertia | Robots, XY tables, Chip mounters, Sewing machines, Food processing machines |
Kollmogen AKM Series
- Best-in-Class Performance
- Flexibility to Find an Exact-fit Solution in a Standard Produc
- Ease-of-Use and Faster Commissioning
| Frame Size | AKM1 | AKM2 | AKM3 | AKM4 | AKM5 | AKM6 | AKM7 | AKM8 |
|---|---|---|---|---|---|---|---|---|
| Stack Length | 1,2,3 | 1,2,3,4 | 1,2,3 | 1,2,3,4 | 1,2,3,4 | 2,3,4,5 | 2,3,4 | 2,3,4 |
| Windings | B,C,D,E | C,D,E,F,G | C,D,E,H | C,E,G,H,J,K | E,G,K,L,M,N | G,K,L,M,N,P | K,L,M,P | T |
| Max BUS (VDC) | 320 | 640 | 640 | 640 | 640 | 640 | 640 | 640 |
| Max Stall Tc Nm (lb-in) |
0.409 (3.62) |
1.4 (12.6) |
2.88 (25.5) |
6.0 (53.1) |
14.1 (125) |
25.0 (221) |
53.0 (469) |
140 (1239) |
| Max Tp Nm (lb-in) |
1.46 (12.9) |
4.82 (42.7) |
10.22 (90.5) |
20.4 (181) |
38.4 (340) |
65.2 (557) |
143 (1269) |
668 (5912) |
| Max Rated N | 8000 | 8000 | 7000 | 6000 | 6000 | 6000 | 3500 | 3000 |
| Max Rated Power @ Max BUS kW (Hp) |
.30 (.41) |
.54 (.72) |
1.19 (1.59) |
1.73 (2.32) |
3.87 (5.19) |
6.16 (8.25) |
7.71 (10.34) |
19.5 (26.1) |

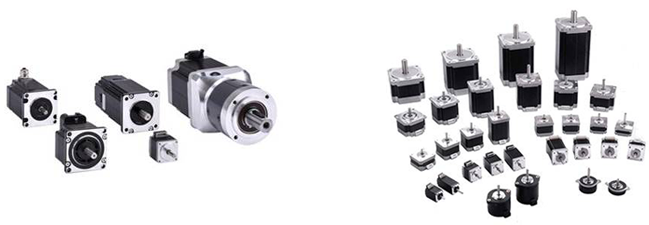

Moons’
- 2 phases 1.8° hybrid stepper motor is the most popular in market and has the most
extensive product coverage, as a result of a series of optimizations and improvements,
its performance and value has been greatly improved.
| NEMA 8 | NEMA 11 | NEMA 14 | NEMA 17 | NEMA 23 | NEMA 24 | NEMA 34 | |
| Phase / Step Angle | 2 / 1.8 | 2 / 1.8 | 2 / 1.8 | 2 / 1.8 | 2 / 1.8 | 2 / 1.8 | 2 / 1.8 |
| Frame Size | 20x20mm | 28x28mm | 35x35mm | 42x42mm | 56.4x56.4mm | 60x60mm | 86x86mm |
| Features | Small Size, High torque, Smooth movement |
Small Size, High torque, Low Noise |
Small Size, High torque, Low Noise |
Small Size, Low inertia, Fast raising speed |
Small Size, Low Noise, Smooth movement |
Small Size, Low Noise, Smooth movement |
Small Size, Low inertia, Fast raising speed |
